5000-M Series Side Counterweight Duplex Elevator
The 5000-M Series Side Counterweight Duplex Elevator is sophisticated and space-efficient vertical transportation solution exclusively designed for duplex houses and two-story residential applications. Leveraging a specialized compact drive system, it delivers exceptional stability and smooth operation, perfectly tailored to the unique height constraints and layout requirements of duplex buildings.
Product Parameter (specification)
|
Item |
Specification |
|
Drive System |
Globally Leading Traction Steel Belt Drive |
|
Design Philosophy |
Minimalist Design with Three "Nos" |
|
Design Detail 1 |
No visible connecting bolts |
|
Design Detail 2 |
No visible shaft cables |
|
Design Detail 3 |
No visible running components |
|
Minimum Shaft Size |
830mm × 860mm |
|
Minimum Ceiling Height |
2500mm |
|
Minimum Pit Depth |
≥60mm |
|
Floor Coverage |
2 ~ 5 floors |

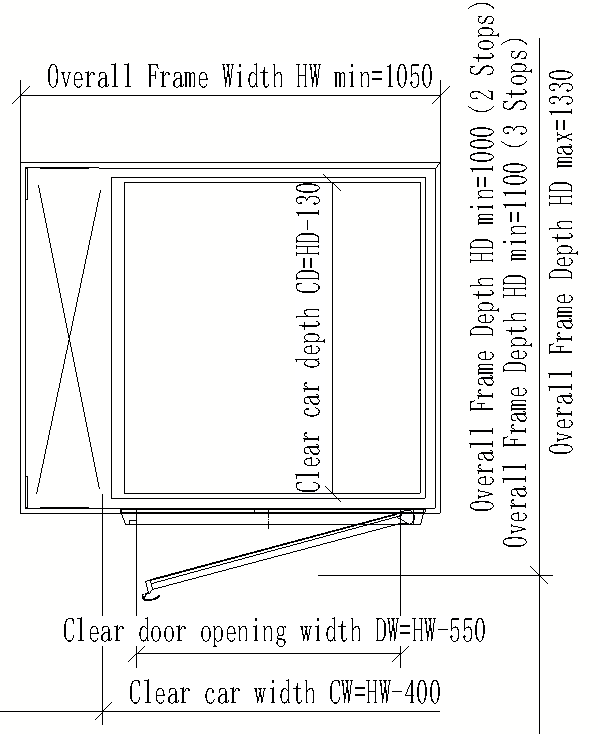

5000-M Side Counterweight
|
Item |
Formula / Specification |
|
Counterweight position |
Side-mounted |
|
Minimum shaft width (HW min) |
HDmin=1000 (2 floors ) |
|
Maximum shaft width (HW max) |
HDmax=1330 (2 floors) |
|
Maximum shaft width (HW min) |
HDmin=1100 (3 floors ) |
|
Minimum shaft width (HD max) |
HD max = 1330mm |
|
Cabin net width (CW) |
CW = HW − 400mm |
|
Cabin net depth (CD) |
CD = HD − 130mm |
|
Door net width (DW) |
DW = HW − 550mm |
Product Configuration
Plantform Options
Aluminum alloy structure platform, high-end rock plate or leather soft-pack avant-garde customization
HWJ-771
Soft pack-9
HWJ-761
Fendi grey
Feature
Globally Leading Traction Steel Belt Drive
Adopts a state-of-the-art traction steel belt drive system, delivering smooth, quiet, and stable operation with enhanced safety and extended service life.
-Minimalist Design with Three "Nos"
- No visible connecting bolts
- No visible shaft cables
- No visible running components
Creates a clean, sleek interior appearance while maintaining structural integrity and safety.
Space-Efficient L-Shaped Platform: Optimized for wheelchair accessibility and easy entry/exit, ideal for home use.
Flexible Installation: Supports shallow pit/no-pit and low overhead requirements, suitable for both new construction and retrofitting.
Safety & Reliability: Equipped with comprehensive safety features including emergency leveling, overload protection, and safety interlocks.
Customization: Offers a wide range of finishes, materials, and door configurations to match home decor.
Application
Perfect for villas, private homes, duplex apartments, and small residential buildings, providing a luxurious and convenient vertical transportation solution.
