Zhejiang Homeway Elevator Co., Ltd. is one of the leading manufacturers and suppliers of 3000-2a series side counterweight panoramic duplex lift in China. We warmly welcome you to buy the newest household elevators made in China here and get pricelist from our factory. All customized products are with high quality and competitive price.

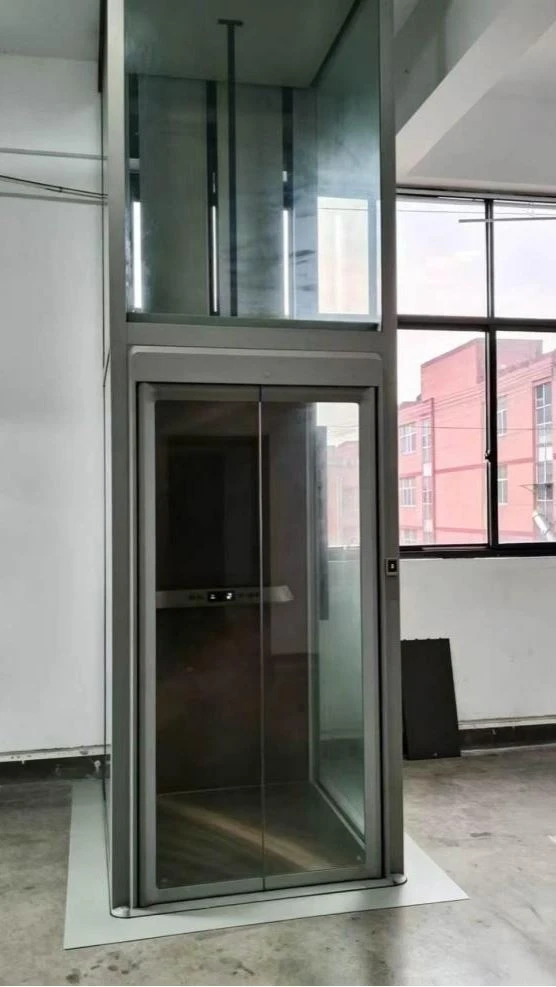

3000-2A Series Side Counterweight Panoramic Duplex Lift
The 3000-2A Series Side Counterweight Panoramic Duplex Lift is sophisticated and space-efficient vertical transportation solution exclusively designed for duplex houses and two-story residential applications. Leveraging a specialized compact drive system, it delivers exceptional stability and smooth operation, perfectly tailored to the unique height constraints and layout requirements of duplex buildings.
Product Parameter (specification)
| Item | Specification |
| Drive System | Globally Leading Traction Steel Belt Drive |
| Design Philosophy | Minimalist Design with Three "Nos" |
| Design Detail 1 | No visible connecting bolts |
| Design Detail 2 | No visible shaft cables |
| Design Detail 3 | No visible running components |
| Minimum Shaft Size | 1430mm × 1700mm |
| Minimum Ceiling Height | 2700mm |
| Minimum Pit Depth | 100mm |
| Floor Coverage | 2 ~ 6 floors |
3000-2A Rear Counterweight
| Item | Formula / Specification |
| Minimum shaft width (HW min) | HW min = 1200mm |
| Minimum shaft width (HW max) | HW max = 1700mm |
| Maximum shaft depth (HW max) | HW max = 1430mm |
| Minimum shaft depth (HD min) | HD min = 1100mm |
| Cabin net width (CW) | CW = HW − 450mm |
| Cabin net depth (CD) | CD = HD − 130mm |
| Door net width (DW) | DW = HW−550mm |
Hoistway drawing
Product Configuration
Plantform Options
Aluminum alloy structure platform, high-end rock plate or leather soft-pack avant-garde customization
HWJ-771
Soft pack-9
HWJ-761
Fendi grey
Feature
Globally Leading Traction Steel Belt Drive
Adopts a state-of-the-art traction steel belt drive system, delivering smooth, quiet, and stable operation with enhanced safety and extended service life.
-Minimalist Design with Three "Nos"
- No visible connecting bolts
- No visible shaft cables
- No visible running components
Creates a clean, sleek interior appearance while maintaining structural integrity and safety.
Space-Efficient L-Shaped Platform: Optimized for wheelchair accessibility and easy entry/exit, ideal for home use.
Flexible Installation: Supports shallow pit/no-pit and low overhead requirements, suitable for both new construction and retrofitting.
Safety & Reliability: Equipped with comprehensive safety features including emergency leveling, overload protection, and safety interlocks.
Customization: Offers a wide range of finishes, materials, and door configurations to match home decor.
Application
Perfect for villas, private homes, duplex apartments, and small residential buildings, providing a luxurious and convenient vertical transportation solution.
Delivery, Shipping & Service
Door-to-Door Delivery
We deliver your HomeWay 1000 Series home elevator safely to your location, with full tracking and on-time guarantee.
Professional Installation
Certified technicians handle on-site setup, ensuring compliance with local safety standards and smooth operation of your residential elevator.
24/7 Support & Maintenance
Emergency response, regular check-ups, and genuine parts supply-we've got your home elevator covered for long-term reliability.
FAQ
Q: What's the maximum load capacity of Homeway home elevators?
A: Our home elevators typically support 3–5 persons, with a load capacity ranging from 250 kg to 400 kg according to different models.
Q: Does Homeway provide on-site measurement service?
A: Yes, our professional engineers can provide on-site measuring and planning to ensure the elevator fits your building structure perfectly.
Q: What's the average power consumption of a home elevator?
A: Homeway home elevators are energy-saving. The daily power consumption is similar to a common household refrigerator, very economical.
Q: Can the elevator run quietly without disturbing family life?
A: Yes. We use silent traction systems and shock absorption design, ensuring low noise during operation.
Q: Are your home elevators suitable for elderly or disabled users?
A: Absolutely. Our elevators feature barrier-free design, stable running, easy operation, and safe functions for the elderly and people with limited mobility.
Q: Does the elevator need a separate shaft or pit?
A: For most models, a small pit is recommended, but we also offer pit-less or shallow-pit solutions for homes that cannot be renovated.
Q: Can I choose different door opening types?
A: Yes, we support center opening doors, side opening doors, and telescopic doors to match different space layouts.
Q: How long is the service life of Homeway home elevators?
A: With proper maintenance, the service life can reach 15–20 years, and key components can be replaced to extend usage time.
Q: Will installation cause heavy damage to the house?
A: No. Our installation is lightweight and will not damage the main building structure, with short construction period.
Q: Can we get technical support if we have our own installation team?
A: Yes. We provide detailed installation manuals, video tutorials, and online technical guidance for your installation team.
