Zhejiang Homeway Elevator Co., Ltd. is one of the leading manufacturers and suppliers of 8000 series rear counterweight square frame four-corner arc panoramic elevator in China. We warmly welcome you to buy the newest household elevators made in China here and get pricelist from our factory. All customized products are with high quality and competitive price.

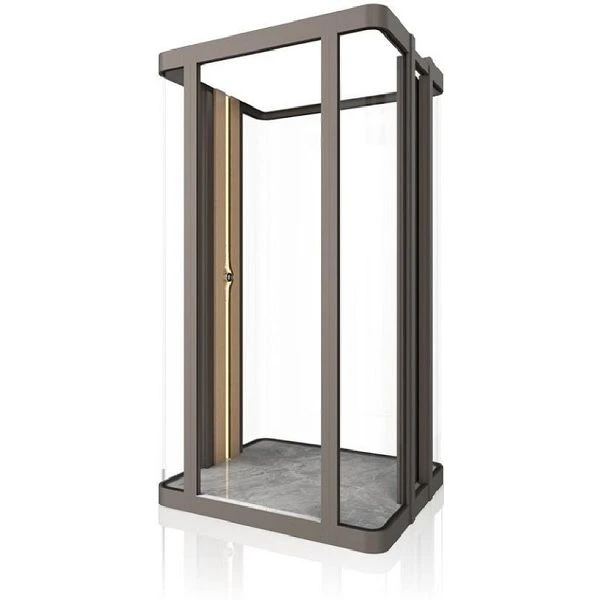

8000 Series Rear Counterweight Square Frame Four-Corner Arc Panoramic Elevator
The 8000 Series Rear Counterweight Square Frame Four-Corner Arc Panoramic Elevator is a premium home elevator tailored for modern villas, townhouses, and high-end private residences. It features an elegant rounded-square profile with panoramic glass shaft design, delivering both aesthetic appeal and unobstructed sightseeing experience while ensuring safety and comfort.
Product Parameter (specification)
| Item | Specification |
| Applicable Scenarios | Three-quarter-turn stair / Hollow floor slab |
| Minimum ceiling height | 2700 mm |
| Minimum pit depth | 150 mm |
| Floor coverage | 2~7 floors |
| Speed | 0.63 m/s |
| Counterweight type | Side counterweight (double counterweight) |
| Minimalist Product Aesthetics | No visible running component No visible connecting bolts No visible electrical tetherFive-sided open view |
| Non-standard design | Flat shaft / Narrow shaft |
Rear counterweight
| Floor coverage | 2~7 floors |
| Speed | 0.63 m/s |
| Counterweight type | Rear Counterweight |
| Cabin net width calculation | Net width of cabin = External frame width − 380 mm |
| Cabin net depth calculation | Net frame depth = External frame depth − 550 mm |
| Ceiling height → Car net height | 2900 mm → 2200 mm |
| Minimum pit depth | 120 mm (including car floor) |
| Hoistway exterior width | 1400 mm(600 center-opening) |
Hoistway drawing
Product Configuration
HWJ-361 (back counterweight)
Frame: Phantom Black premium aluminum alloy with AkzoNobel coating
Cabin walls: Art alloy panels, black titanium mirror stainless steel, concealed light strips, safety tempered glass
Ceiling: Premium starry sky roof, light strips, safety tempered glass
COP: Mecha-style armrest control box
Floor: Sintered stone (Twilight Snow)
HWJ-362 (side counterweight)
Frame: Earth Brown Premium aluminum alloy with AkzoNobel coating
Cabin walls: Artistic alloy panels, walnut wood, ambient lighting, safety tempered glass
Ceiling: Acrylic light panel, safety tempered glass
COP: Floating Watch style Control Box
Floor: Sintered stone (Wyndham Gray)
Production Details
Mecha-style Armrest Control Box
Ergonomically designed, paired with an intelligent interactive knob for a superior feel.
Achieving perfection in the unseen details
A 10mm threshold gap is not only a precise control within industry standards, but also our persistent pursuit of safety and smoothness. Wheelchairs and strollers pass through smoothly without jerks, high heels navigate freely without restriction, and phones are prevented from falling. This perfectly measured spacing allows stability and fluidity to coexist in perfect balance.
Transparent Revolution Breaking the Boundaries of Space
While conventional observation elevators are still focused on offering views in all four directions, we have pioneering a five-sided design that creates an infinite visual extension. At the same time, we have introduced the first observation elevator without a front wall, removing the front barrier to deliver an unprecedented 270° panoramic open view. This is not just an elevator-it is a moving aerial observation deck. The four-corner curved observation elevator transforms vertical transportation into an immersive experience that allows zero-distance interaction with the outside world.
Floating Watch style Control Box
Integrating the aesthetics of watches into vertical movement, the artistic alloy panels and century-old walnut wood create a dialogue that spans time. The coolness of the metal and the warmth of the wood grain achieve a subtle balance at the touch of your fingertips, complemented by an intelligent interactive knob for a perfectly harmonious experience.
Feature
Rounded Square Corners Design: Unique rounded-square shaft and cabin structure, softening the sharp edges for a sleek, modern look while enhancing safety by eliminating hard corners.
Panoramic Sightseeing Experience: Full-view glass panels wrap around the shaft and cabin, maximizing natural light and offering a seamless view of the home interior or outdoor landscape during vertical travel.
Reliable Traction Drive System: Equipped with a globally leading traction steel belt drive, ensuring quiet, stable, and energy-efficient operation with low maintenance needs and long service life.
Space Optimization: Compact footprint and flexible installation, compatible with both new constructions and retrofitting projects; supports shallow pit/low overhead requirements to adapt to diverse home layouts.
Customizable Aesthetics: Wide range of frame finishes (aluminum, steel, or coated materials), cabin interior options (marble, wood, soft-pack), and lighting choices to match any home decor style.
Intelligent Control System: Advanced microcomputer control ensures smooth leveling and precise operation; optional smart home integration allows remote monitoring and control via mobile devices.
Comprehensive safety features: emergency automatic leveling, power failure emergency descent, overload protection, safety interlocks for car and landing doors, infrared light curtain protection, and speed limiter & safety clamp.
Compliance with international home lift safety standards, providing peace of mind for daily family use.
Application
Ideal for villas, duplex apartments, townhouses, self-built homes, and high-end private residences, the 8000 Series elevates the home's aesthetic while offering a safe, comfortable, and visually stunning vertical transportation solution.
Delivery, Shipping & Service
Door-to-Door Delivery
We deliver your HomeWay 1000 Series home elevator safely to your location, with full tracking and on-time guarantee.
Professional Installation
Certified technicians handle on-site setup, ensuring compliance with local safety standards and smooth operation of your residential elevator.
24/7 Support & Maintenance
Emergency response, regular check-ups, and genuine parts supply-we've got your home elevator covered for long-term reliability.
FAQ
Q: What is the difference between a home elevator and a commercial elevator?
A: Home elevators are smaller, quieter, energy-saving and require no machine room.
They are designed for villas and private homes, while commercial elevators are for public buildings with higher capacity and speed.
Q: Are Homeway home elevators safe?
A: Yes. Our elevators are equipped with emergency backup, anti-pinch protection, overload protection, emergency call, safety gears and multiple safety systems.
Q: Will I be trapped if there is a power failure?
A: No. All our elevators have a backup battery system that automatically lowers the car to the nearest floor and opens the door safely.
Q: Do I need a built-in shaft for installation?
A: No. Homeway elevators come with a self-supporting structure, so no extra concrete shaft is required.
Q: How much space do I need to install a home elevator?
A: The minimum required space is around 1000×1000 mm. We provide customized solutions for small spaces.
Q: Is a pit required for installation?
A: A shallow pit is recommended, but we also offer pit-less models that can be installed directly on the ground.
Q: Does a home elevator need a machine room?
A: No. All Homeway home elevators are machine-room-less to save space.
Q: Can a home elevator be installed in an existing house?
A: Yes. Our elevators are suitable for both new houses and renovation projects with no damage to the main structure.
Q: Can I customize the elevator style and color?
A: Yes. We support customization of cabin material, lighting, door type, color and size to match your home decoration.
Q: How many floors can your home elevators serve?
A: Our home elevators are designed for 2 to 6 floors, with load capacities from 250kg to 400kg.
Q: Is the elevator noisy during operation?
A: No. It runs with low noise, similar to daily conversation, and will not disturb your family life.
Q: How often does the elevator need maintenance?
A: We recommend professional maintenance every 6–12 months to ensure safe and stable performance.
Q: How long is the warranty period?
A: We provide a 2-year warranty for the whole elevator and lifelong after-sales support.
Q: How long is the production and installation time?
A: Production takes 15–25 working days. On-site installation and commissioning usually takes 3–7 days.
Q: Do you support overseas orders?
A: Yes. We accept global orders and provide professional shipping, installation guidance and technical support.
